Varimax Bosch PCA supercharger intercooler pump upgrade kit for CTSV LSA GT500

$239.95

Varimax Intercooler Pump Upgrade Kit for Bosch PCA pump applications including Cadillac CTS-V (LSA engine)

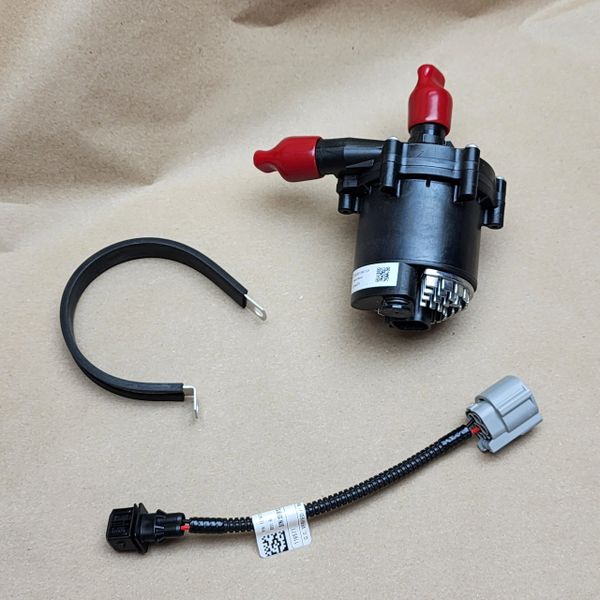

Includes:

High flow Varimax brushless DC intercooler pump Pump part #: CPS-301-060-12A
Mounting clamp
Adapter harness

Description:

The VariMax brushless DC fluid pump is ideally suited for use as an intercooler circulation pump but can also be used as a coolant circulation pump for many other applications including battery cooling, secondary engine cooling, retained heat/cabin heating etc. The pump features a motor with a 3 phase inner roter design that protects itself against over and under voltage, over temperature and over current conditions. The integrated pump controller provides soft-start pump control, eliminating pump start up current spikes.

The control strategy of the VariMax pump allows it be to wired to operate either at full speed (full flow) all the time with no external control required or it can also be speed controlled by a PWM signal from an external device.

The VariMax weighs less than 570 grams.

The VariMax pump flows 25% more than the common old Bosch PCA intercooler pump and flows the same as the stock 5th Gen ZL1 Camaro (2012-2015 MY) intercooler pump (when tested in the stock ZL1 intercooler and intercooler radiator circuit). When comparing flow rates be sure to look at what pressure the pump is rated for that flow. Many pumps that companies claim to flow more than this pump actually flow less once you look at the flow rate for the same pressure value (restriction level).

This kit is designed to be a great upgrade for these vehicles that use the Bosch PCA pump:

2009-2015 Cadillac CTS-V
1999-2004 F150 Lightning
2003-2004 Terminator Cobra
2005-2010 Roush Mustang GT
2007-2012 Mustang GT500
Many early aftermarket supercharger kits that used liquid to air intercoolers

NOTE - this kit is not for applications that use the Bosch PCA 0 392 022 010 pump (see images) that uses a different electrical connector. The "010" pump is found on some Mercedes and BMW applications.

Pump specifications:
