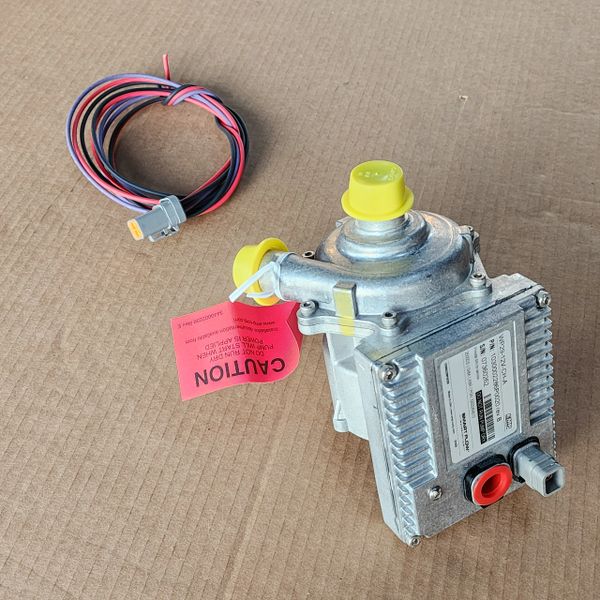

Stewart (EMP) High Volume & High Pressure Intercooler Pump

Manufacturer: Stewart Components (EMP)

Part: E2512A

This pump was originally developed for the Ford GT project as an intercooler pump and it remains one of the highest performing intercooler pumps available. This pump provides some of the highest flow at the pressures found in intercooler systems. Brushless DC motor provides long life. 1" (25 mm) inlet and outlet fittings for high volume flow.

• Built in soft start control from on-board pump controller and igntion or switch activation wire - no relay required.
• 25 amp maximum current draw (controller limited)
• Requires 1" inlet from intercooler reservoir
• Configured for both simple hard wiring for constant full speed/flow operation or can also be controlled via J1939 CAN
  • CAN connector and harness not included - contact us if you need these components or assistance with CAN integration
• Well suited for use as a coolant circulation pump in a broad range of applications including:
  • Charge air cooling for turbocharged and supercharged engines
  • EGR cooling
  • Fuel cell coolant circulation
  • Electric and hybrid vehicle battery pack fluid circulation
  • HVAC, electronics, traction motor and hydraulic cooling fluid circulation

Specifications:

• Rated voltage: 9-18 VDC (an 18-32 VDC version is also available - contact us to special order this version)
• Operating temperature: -40 deg C to 95 deg C
• Storage temperature: -40 deg C to 125 deg C
• Weight: 6.5 lbs
• Inlet connection: 1.0" hose
• Outlet connection: 1.0" hose
• Target life: 20,000 hours
