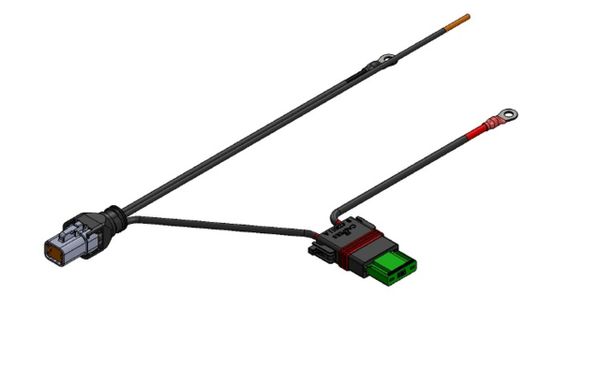

Heavy-duty fused power harness for EMP WP29 WP32 Stewart E2512A intercooler pumps

PSS part #: PSS-WP29-002

Description:

• Heavy-duty fused power harness for EMP WP29/WP32 and Stewart E2512A pumps
• 12AWG power and ground wires (red & black)
• 14AWG trigger wire (orange)
• 4th connector cavity plugged
• 60" (5') length trigger/activation wire
• 48" (4') ground wire
• 42" long power wire (24" from connector to fuse and then 18" from fuse to power side ring terminal)
• High quality TXL wire used
• Heavy duty large footprint sealed 30A Maxi-fuse designed for sustained high current pump operation.
• Includes protective backshell on 4 pin pump side connector for increased durability/safety

NOTE - common question we get - why no relay? No relay is needed because this pump has a built in speed controller so the activation wire that would normally trigger a relay instead goes to the activation input on the pump controller and the pump controlled enables the pump when that wire has been activated (connected to 12V). Because this can be done directly by the pump controller no relay is needed.
