PSS Stainless Steel Bracket and Clamp for Pierburg, Bosch and other electric coolant pumps and devices (70-90 mm OD)

PSS Part #:    PSS-BRKT-7090-1

Description:

• Heavy duty 2.5 mm (0.100") thick stainless steel bracket with two mounting holes and a stainless clamp designed to accept pumps (and other round objects) from 70 to 90 mm in diameter (2-3/4" to 3-1/2").
• Mounting holes are sized to accept 6 mm or 1/4" fasteners.
• Mounting holes are 120 mm (4.75") apart, with one hole slotted to allow for some variation in bolt hole location.
• Bracket design allows pump to be rotated to almost any angle for proper placement (for vehicle fitment and to meet pump manufacturer orientation requirements).

• Clamp can also be rotated on the bracket to provide clearance or easier access to the clamp tightening fastener.

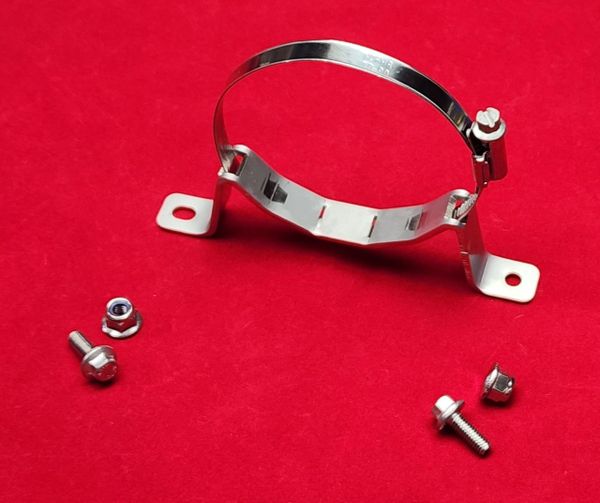

Includes:

• 304 stainless steel heavy duty bracket
• High quality Norma stainless worm gear band clamp
• Stainless steel M6-1x16 mm flange head screw (2x)
• Stainless steel M6-1 nylon locking flange nut (2x)

Designed to work with the following pumps (clamps over the existing rubber isolator built into these pumps):

• Pierburg CWA100
• Pierburg CWA150
• Bosch PCE, PN 0 392 024 058
• Bosch PCE, PN 0 392 024 078
• Bosch PCE2-XL, 0 392 024 53G
• Bosch PDE pumps

If you are using this with a pump that does not habe a rubber isolation ring built in we recommend adding one to help reduce noise and vibration (NVH) issues. For very wide/long pumps you may want to use two clamps (only one clamp is needed for the above applications).

Note - pump shown in some images just for reference to show how the pump is installed. A pump is NOT included with the bracket.

Dealers and installers - contact us for quantity pricing.
