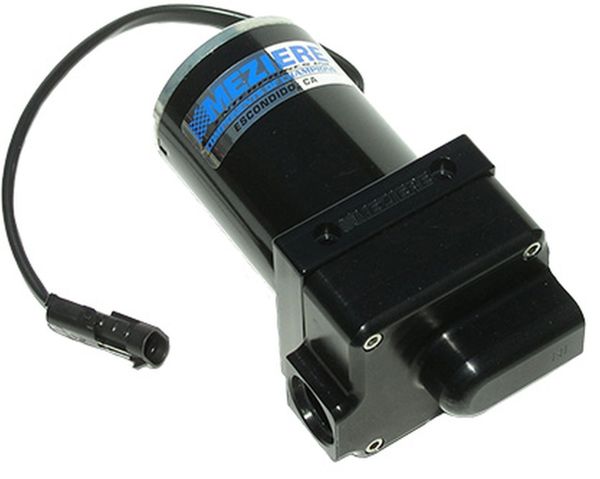

Meziere Electric Remote Inline Water Pump, 20 gpm

Manufacturer: Meiziere Enterprises

Part #: WP136S

Manufacturer technical specifications:

• 20 gpm (at 12 volts and ~1.2 psi pressure)
• Amperage draw: Under normal use the pump will draw 5-6 amps.
• -12 SAE ORB female inlet and outlet fittings. Adapter fittings available for hose, AN etc. Contact us if you need additional parts with your order.
• Overall Height Dimension: The standard pump is 7.25" high overall and about 3.5" square.
• Pump Weight: This application weighs 5.2 lbs.
• Finishing The System: The fittings need to be ordered according to the size of the radiator hoses.
• Note for 16 volt systems: The 12 volt pump will work for limited use applications. The pump should not be powered while charging your 16 volt system.

• Additional Notes: In Meziere's experience a 20 GPM pump can cool up to approximately 250HP continuous duty. The 35 GPM pump is suitable for normally aspirated engines up to 650HP. Supercharged, Turbocharged and high compression, high horsepower applications should use the 55GPM High Flow pump only.

• Remote / universal inline design
• Suitable for street or drag strip use.
• 2400+ hour life expectancy.
• Show quality finish.
• Light weight. Complete standard unit weighs only 5.2 pounds!
• Stainless steel large diameter main shaft with high performance ceramic seal.
• Single inlet port and single outlet port each threaded #12AN to accept a variety of fittings.
• Inline design works well as a stand-alone or as a booster pump.
