DSX Billet LSA LS9 Fuel Rail

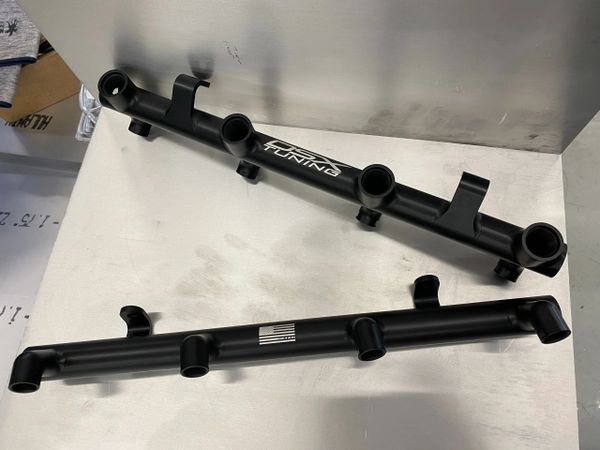

These fuel rails are made entirely in house by DSX from a 15"x3"x2.5" piece of 6061-T6 aluminum. Each end has an 8 ORB port as well as each drill access hole for a total of six ports allowing many configurations for connections. Each injector boss is also machined to accept a retaining clip to ease installation effort and keep injectors in place. Unlike any other rail, the mounting brackets are machined into the piece to make for a one piece rail to give a complete and sleek overall look. Each set is anodized black for corrosion protection. Other colors are available for an extra cost (and extended lead time).

DSX offers low profile 8 ORB plugs meant to match these rails perfectly (see close up image). A minimum of nine is required if you use the rail itself as a means to connect to the other rail, otherwise ten are required if you Y your fuel lines before the rails. Contact us if you also want these ORB fittings.
