Varimax 12V electric BLDC intercooler coolant fluid water circulation pump
12V High Flow Electric Coolant Fluid Circulation Pump
For Intercooler, Battery & Aux Heat Circulation
Description:
The VariMax brushless DC fluid pump is ideally suited for use as an intercooler circulation pump but can also be used as a coolant circulation pump for many other applications including battery cooling, secondary engine cooling, retained heat/cabin heating etc. The pump features a motor with a 3 phase inner roter design that protects itself against over and under voltage, over temperature and over current conditions. The integrated pump controller provides soft-start pump control, eliminating pump start up current spikes.The control strategy of the VariMax pump allows it be to wired to operate either at full speed (full flow) all the time with no external control required or it can also be speed controlled by a PWM signal from an external device.
The VariMax weighs less than 570 grams.
The VariMax pump flows 25% more than the common old Bosch PCA intercooler pump and flows the same as the stock 5th Gen ZL1 Camaro (2012-2015 MY) intercooler pump (when tested in the stock ZL1 intercooler and intercooler radiator circuit). When comparing flow rates be sure to look at what pressure the pump is rated for that flow. Many pumps that companies claim to flow more than this pump actually flow less once you look at the flow rate for the same pressure value (restriction level). Great upgrade for these vehicles that use the Bosch PCA pump:
- 2009-2015 Cadillac CTS-V
- 1999-2004 F150 Lightning
- 2003-2004 Terminator Cobra
- 2005-2010 Roush Mustang GT
- 2007-2012 Mustang GT500
- Many early aftermarket supercharger kits that used liquid to air intercoolers
PSS part #: CPS-301-060-12A
Also sold as the VariMax pump, TAFX410110 pump, Lingenfelter L330030709 and others. This pump was used in many aftermarket supercharger kits from Magnuson, Edelbrock and Whipple.
This pump is also the OEM replacement battery coolant circulation pump for many Tesla vehicle applications. Direct replacement for (same manufacturer and flow/control specifications) as Tesla part #: 6007367-00-E
Pump specifications:
-
Rated f
low: 720 LPH @ 70 kPa
-
Inlet / Outlet connection: 19 mm hose barb (3/4")
-
Motor syle: DC brushless (BLDC)
-
Operating voltage: 8-16 VDC
-
Maximum amp draw: 7.3 Amp

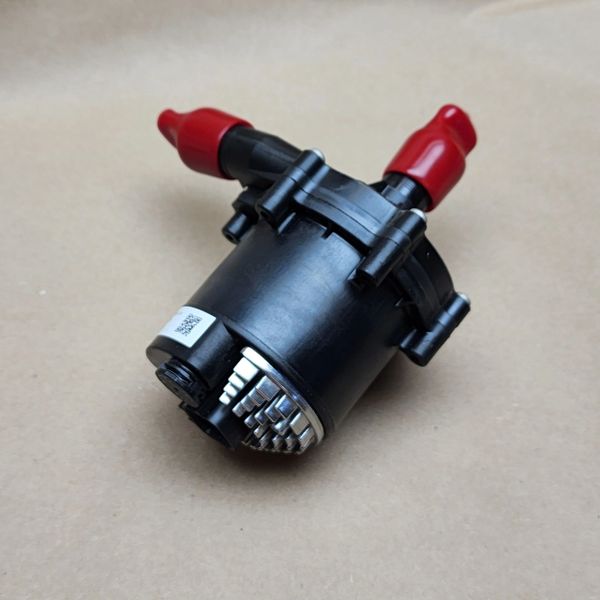

Only includes pump (as shown in images). Does not include bracket or wiring harness.
We do offer a plug-and-play adapter harness for installing the pump in place of the Bosch PCA pump.
We also offer a connector kit for this pump if you want to make your own harness.
Check our other listings for these and other related products.
