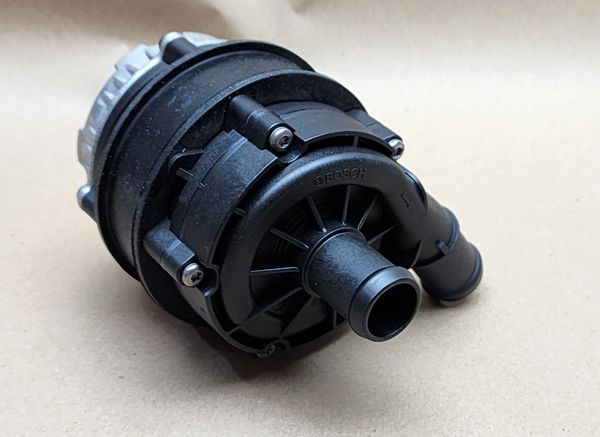

Bosch PCE-L electric coolant pump

Electric coolant pump for use as intercooler fluid circulation pump in turbocharged and supercharged engines, as an auxiliary coolant pump in HVAC systems and as a battery coolant circulation pump in EV and hybrid vehicle applications.

Manufacturer: Bosch

Part #: 0 392 024 058

Specification:

• Brushless drive electronically commuted centrifugal coolant pump
• Flow rate: 1200 liters/hour (16.7 liters/minute or 264 gallons/hr)
• Nominal pressure: 0.6 bar (8.7 psi)
• Weight: 0.66 kg (1.46 lbs)
• Control: PWM or On-Off
• Usage: Suitable for continuous operation
• Fluid: Water/Glycol (50/50)
• Degree of protection: IPX7
• Nominal voltage: 12V
• 20 mm OD inlet and outlet (roughly 7/8")
  • 22.4 mm OD at hose barb

Features and benefits:

• Integrated electronics
• Extremely robust design
• Nearly silent operation - designed for low noise
• PWM speed/flow control available
• High temperature operation of up to 130 degree C

Click here for a link to a CAD model of the pump.
