Norma RSS Normaquick PS3 VDA NW20-90 degree coolant connector, 20 mm to 1" hose

$24.95

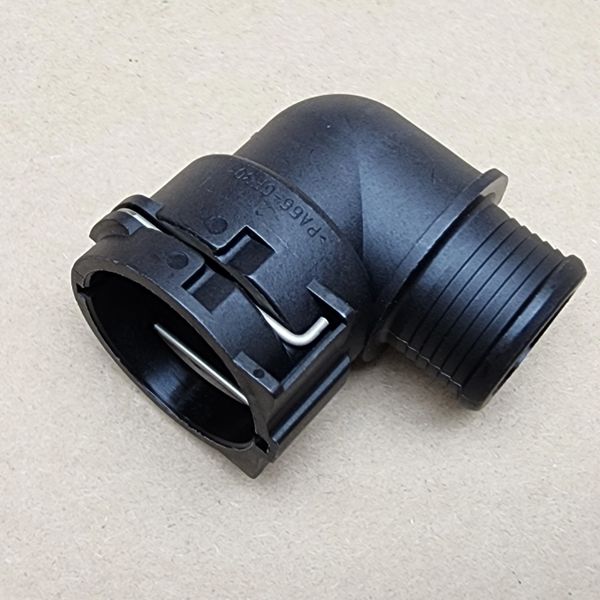

Norma RSS Normaquick PS3 VDA NW20-90 right angle coolant connector

Manufacturer: Norma Group

Part #: 0702 8004 020 / 0702 7004 020

EAN/GTIN: 4050557359034

Description:

Normaquick PS3 NW20 push & seal plastic quick connector, 90 degree (right angle)
Designed according to VDA standard
For use with engine coolant, heater, intercooler and battery coolant fluid circulation systems
PA66 GF30 (glass filled nylon) housing and retainer
Stainless steel retainer spring
EPDM (peroxide cured) O-ring for coolant compatibility
Quick connect side: NW20, 20 mm nominal diameter, for 26.3 mm OD spigot
Hose connection side: 28 mm OD hose barb on other side for 1" ID hose

Note these are the same size quick connects used on some Dodge/Chrysler/Jeep supercharged engine applications that use quick-connect fittings on the intercooler fluid lines, heat exchangers and electric pump.
