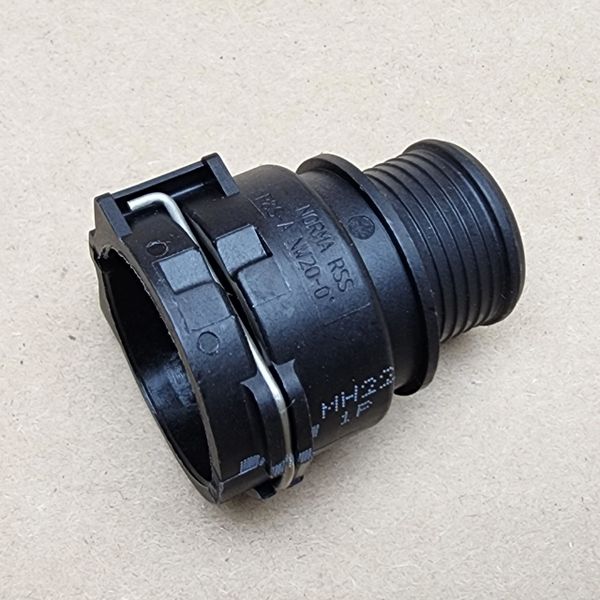

Norma RSS Normaquick PS3 VDA NW20-0 straight coolant connector

Manufacturer: Norma Group

Part #:    0702 8003 020 / 0702 7003 020

EAN/GTIN: 4050557351984

Description:

• Normaquick PS3 NW20 push & seal plastic quick connector, straight (0 degree angle)
• Designed according to VDA standard
• For use with engine coolant, heater, intercooler and battery coolant fluid circulation systems
• PA66 GF30 (glass filled nylon) housing and retainer
• Stainless steel retainer spring
• EPDM (peroxide cured) O-ring for coolant compatibility
• Quick connect side: NW20, 20 mm nominal diameter, for 26.3 mm OD spigot
• Hose connection side: 28 mm OD hose barb on other side for 1" ID hose

Note these are the same size quick connects used on some Dodge/Chrysler/Jeep supercharged engine applications that use quick-connect fittings on the intercooler fluid lines, heat exchangers and electric pump.

Contact us for quantity pricing.
