0-250 psig oil fuel coolant water fluid gas pressure sensor 0.5-4.5 VDC 1/8" NPT

$149.95 $114.95

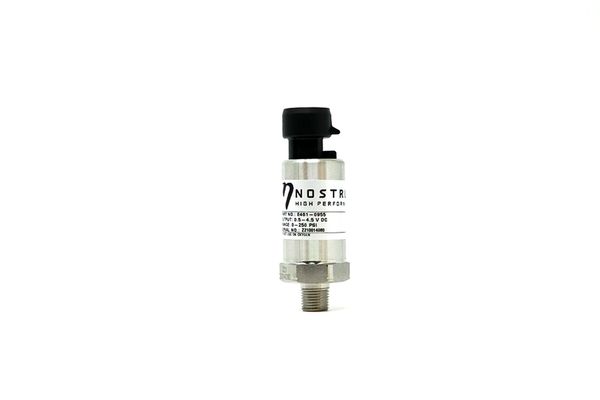

 0-250 psig, 0.5-4.5 VDC ratiometric 1/8" NPT stainless steel pressure sensor w 3 pin Metri-Pack connector

Part #: E461-0955-1


The Nostrum 250 psi pressure sensor is suitable for use with water, coolant, oil, gasoline, ethanol, methanol and most other automotive fluids as well for gases such as nitrogen and air pressure*. Example uses include fuel pressure measurement, water pressure in water injection systems, coolant pressure and transmission fluid pressure measurements. Like most automotive sensors care should be taken not to mount it in very high temperature locations such as line of sight to exhaust manifolds and turbochargers.


Sensor Specifications:
Measurement range: 0 to 250 PSIG (0-~17 bar, gauge)
Output Voltage: 0.5-4.5 vdc, ratiometric
Supply Current: 10mA typical
Input Voltage: 5 Vdc ±0.5 Vdc (regulated)
Response Time: <1 millisecond
Thread Size: 1/8” NPT-M
Hex: 22mm
Housing material: stainless steel
Pressure connection: 304 stainless steel
Electrical connection: Metri-Pack 150 3 pin connector
Mating connector part #: 12065287 or 12065286 [NOT included]
Temperature Compensated: –40 to 105°C (–40 to 221°F)
Operating temperature: –40 to 125°C (–40 to 257°F)
Proof pressure: 500 psi (The maximum pressure the sensor can endure without damage.)
Burst pressure: 1250 psi (The level of pressure at which the sensor will burst.)

*WARNING - This sensor is NOT SUITABLE for use in pure oxygen environments.


Pin locations on the pressure sensor:
Pin Description
A Ground
B Power, +5vdc (regulated)
C Output signal, 0.5-4.5vdc


Sensor pressure vs voltage reading for various pressures:

Vdc psig bar kPa
0.5 0 0 0
4.5 250 17.2 1724


Or if your software needs an equation for the transfer function, here are the transfer functions for the above three units of pressure (where V is the sensor voltage measurement):

PSI = 62.5*V - 31.25

bar = 4.3092*V - 2.1546

 kPa = 430.92*V - 215.46
